Vehicle defense system

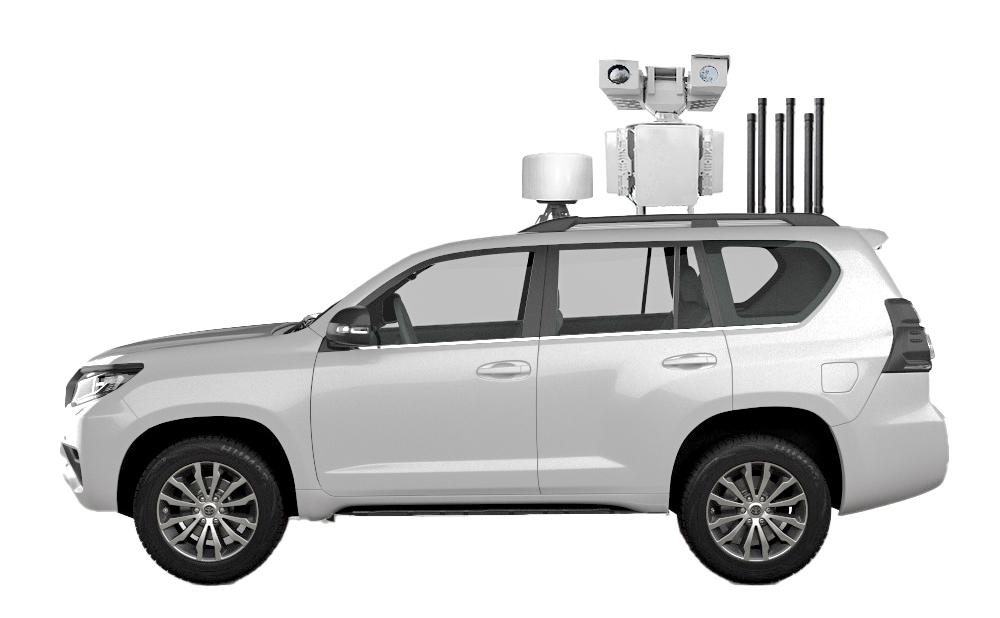

Vehicle-mounted drone jamming system
UAD-XTC-CZGL01
PRODUCT INTRODUCTION
The UAD-XTC-CZGL01 vehicle-mounted system includes a four-sided phased array radar, full-frequency spec-trum detection, electro-optical tracking, and UAV jamming equipment. It detects, tracks, and interferes with UAVs, causing them to hover, land, or return, preventing them from entering the defense zone and ensuring low-altitude airspace safety.
Vehicle integrated design
"Vehicle-mounted, adaptable to various vehi-cles; completes UAV detection and counter-measures with minor modifications."
Omnidirectional detection interference
"Four-sided phased array radar, full-band spec-trum detection, photoelectric tracking, and UAV jamming for 360° airspace coverage."
Prevent multiple models
20-6000MHz interference for multi-frequency band drone disruption, detecting and defend-ing against 99% of UAV models.
Long interference distance
Detection >1.5km, Counter >1km (varies by environment/model).
Mobile deployment
Flexibly deployable in areas unsuitable for fixed installations; supports standalone or networked deployment for low-altitude protection.
One on one fixed system plan
Customized intelligent solutions from consul-tation to installation, tailored to customer needs for enhanced protection.
PERFORMANCE INDEX
| RADAR MONITORING | System: Phased array + all-digital transceiver, DBF technology. |
| Mode of operation: Pulsed Doppler Working frequency band: C band | |
| Detection range: 1500m (RCS -0.01m2), 0°~360° Target capacity: 40 sorties | |
| SPECTRUM DETECTION | Coverage: 20MHz-6GHz Detection range: 5-7km radius, 0°-360° |
| Positioning response: ≤5s Target capacity: 50 sorties | |
| RADI0 JAMMING | 433MHz、915MHz、1.5GHz、2.4GHz、5.8GHz |
| Interference radius: open area ≤3000M, urban environment ≤1000M | |
| PHOTOELECTRIC TRACKING | Infrared camera: Vanadium oxide uncooled detector, 8-14μm response band |
| Image Size:640x512 NETD:<40mK @ 25℃, f#1.0 | |
| Frame Rate: 50Hz Min Object Distance: 30m | |
| Visible Camera: 1/2.8" CMOS, 2MP mage Size: 1920x1280 | |
| Zoom Lens: 30X Optical Zoom; F=4.3mm (Wide) to 129.0mm (Tele); F=1.6 to 4.7 | |
| Diitloom12(30 | |
| OV(oriontal): 63.7 (Wide) to 2.3 (Tele) | |
| Min Object Distance: 10mm (Wide) to 1200mm (Tele) | |
| Min Illumination (50%): | |
| High Sensitivity Mode: 0.35 lx (ICR Of); 0.013 lx (ICR On) Normal Mode: 1.4 lx (ICR Off); 0.05 lx (ICR On) | |
| White Balance: Auto, Auto Tracking, Indoor, Outdoor, Outdoor Auto, | |
| Sodium Vapour Lamp Fixed/Auto, One-Key, Manual | |
| Gain: Auto/Manual, Max Gain Limit | |
| Focus System: Auto (Sensitivity: Normal/Low), One-Key Auto Focus, Manual | |
| Infinity, Interval Auto Focus, Zoom Trigger Auto Focus, ICR | |
| Mode Open Focus Compensation | |
| Defog Mode: Available (On/Off) | |
| Color Enhancement: Available ( On/Off) | |
| Search & Auto Track Distance: Auto Tracking Recognition Ability, Max Track | |
| ing Distance 2km (Phantom3 Drone | |
| MaxTracking Speed:1.5 FOV/s | |
| Tracking Accuracy (Static): ±1 Pixel |
